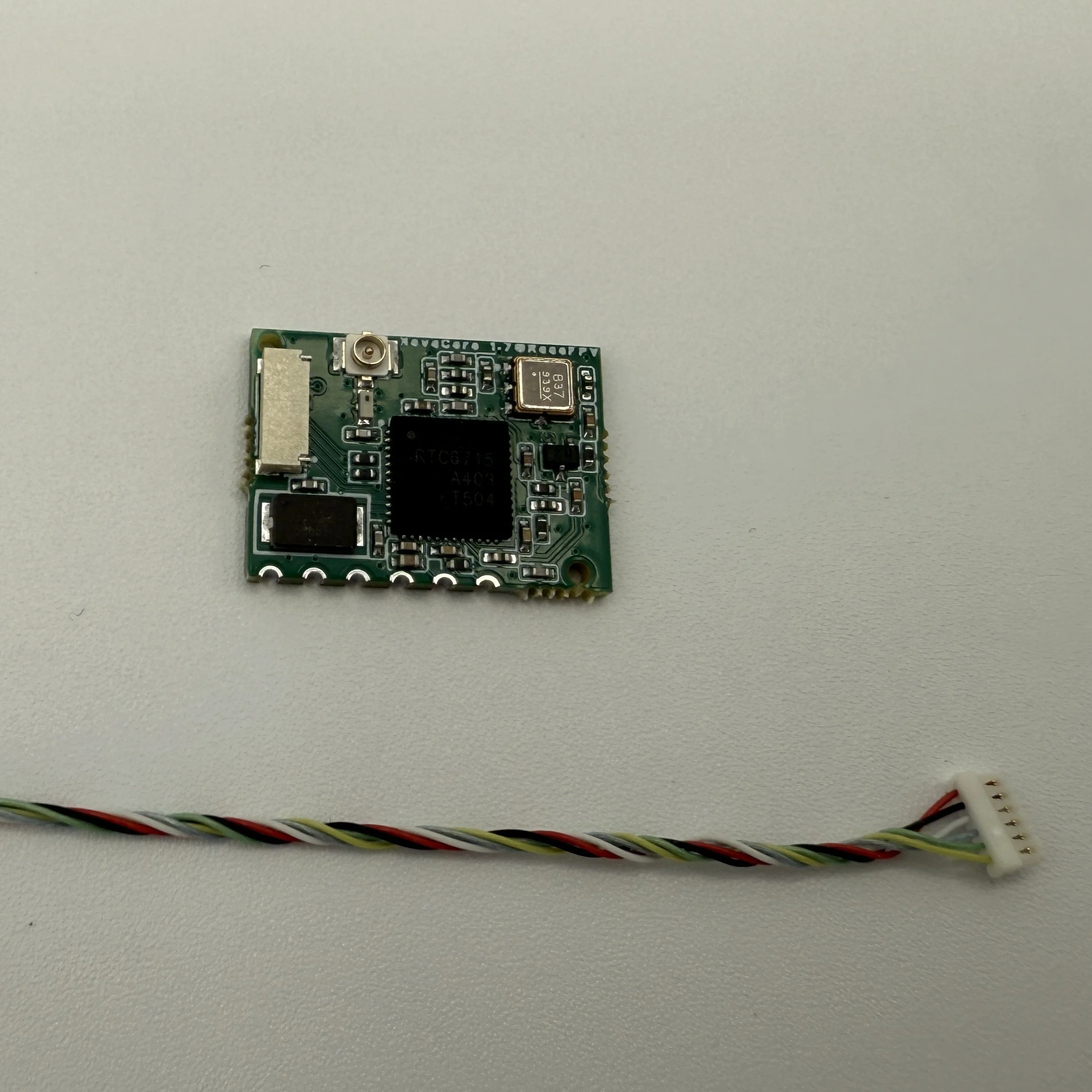

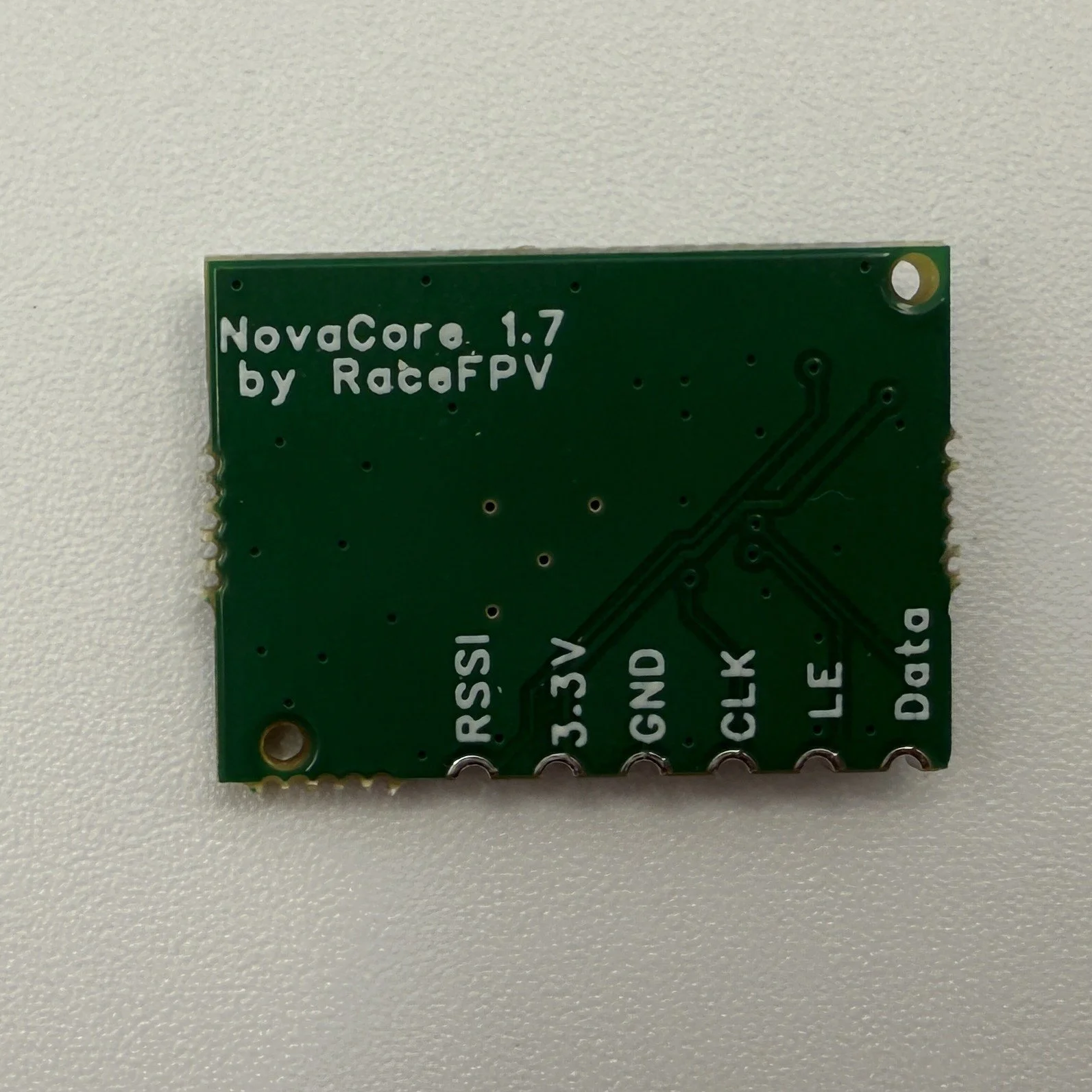

Update: This batch has castellated edges, making it much easier to solder to a main board!

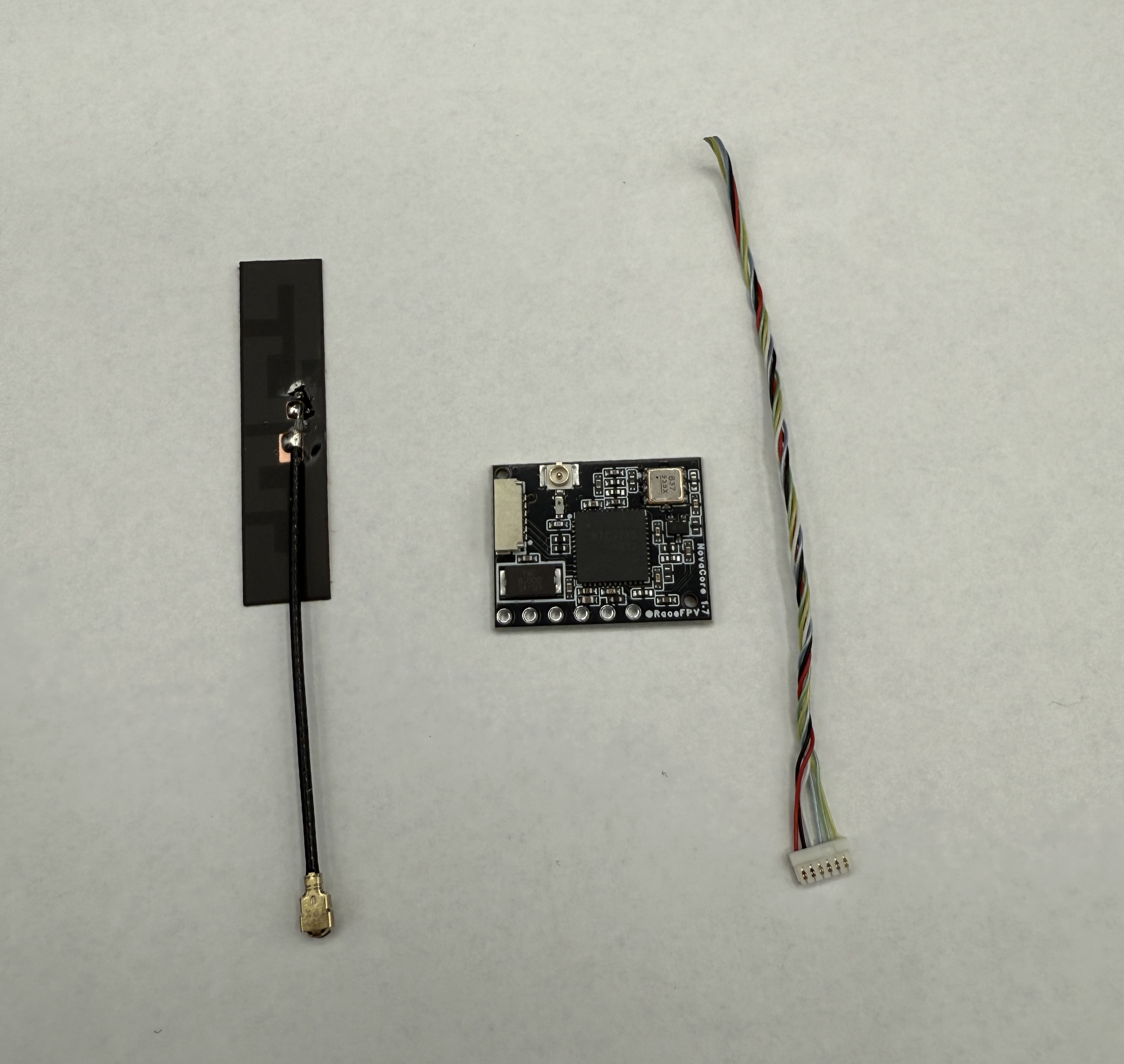

A modern, race timing specific replacement for legacy RX5808 modules, built for reliability and simplicity. Half the size, 30% less power usage, and with a u.fl antenna connector. The front-end of the board has been carefully built from the ground up to only detect drones when it matters, right at the finish line.
3.3v INPUT ONLY!

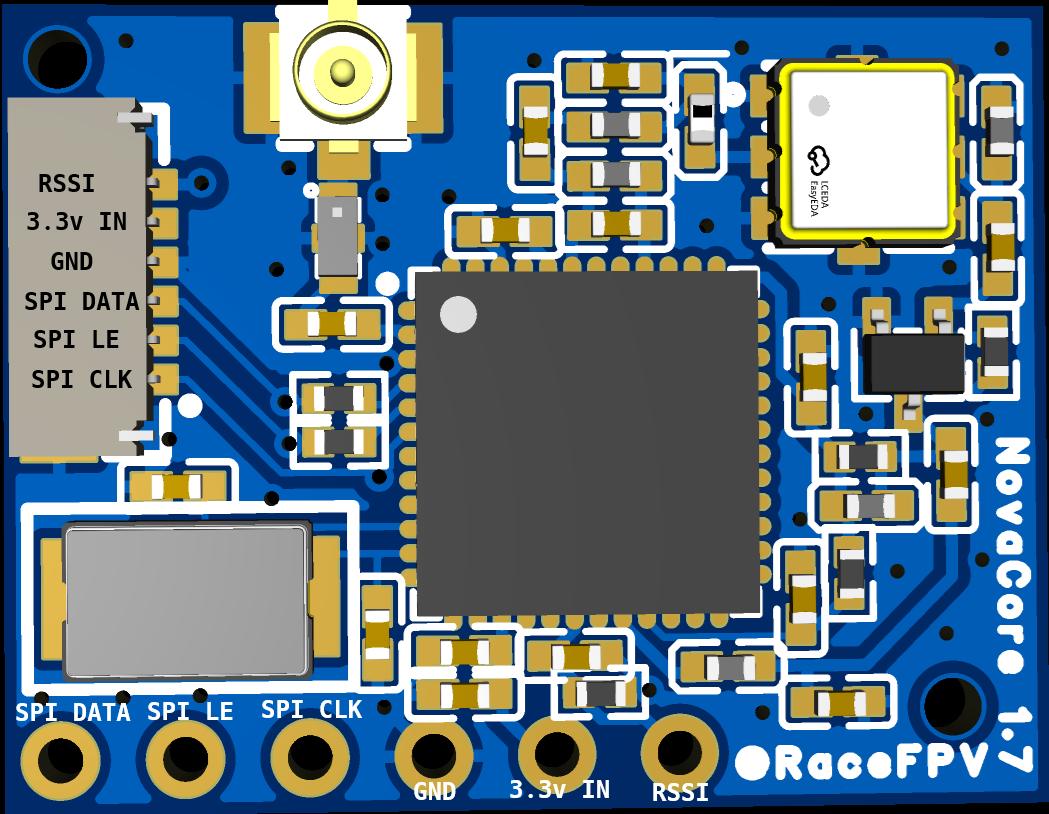

Note: The JST connector wiring colors do not always match one to one with the labels. Be sure to check the datasheet for proper wiring references.
